Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material

Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material
Features Gallery Product Description Request A Quote
Product Name: Grade 1 Grade 2 F67 Ti Rod ASTM F136 Gr5Eli Titanium Rod Medical Ti6al4v Titanium Round Bar
Standard: ASTM
Application: Medical Use
Material: GR5 ELI
Surface: Polished
Weight: Actual Weight
Delivery Status: M Or Y
Grade: Gr5,Gr2,Gr1,Titanium,Gr.12
Package: Wooden Case
Length: 1000mm -6000mm
High Light:

ASTM F136 Titanium Round Bar


Gr5 Titanium Round Bar


Polished Alloy Round Bar

Basic Infomation
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-TB-2021-12
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 5-35days
Payment Terms: L/C, T/T
Supply Ability: 50000 kg per month
Product Description

 grade 1 grade 2 F67 ti rod ASTM F136 Gr5Eli titanium rod medical ti6al4v titanium round bar


Name Medical titanium bar/rod
Medical grade titanium bar/rod
Medical titanium alloy bar/rod
Medical grade titanium alloy bar/rod
Standard ASTM F136
Diameter Titanium bar for bone screw:6mm,8mm, 10mm,12mm
Titanium bar for intramedullary13.5mm, 14.5mm, 16mm
Titanium bar for dental:8mm, 20mm, 25mm,30mm
Titanium bar for bone joint:30mm, 40mm, 65mm
Length 1000mm/3000mm/6000mm
Tolerance h6,h7,h8,h9
Technique Forging ,Machining
Surface acid surface or polishing, sand blasted surface
Shape Round, flat, square, hexagonal,hollow
Application 1.Pins
2.Bone plates
8.Expandable rib cages
9.Spinal fusion cages
10.Finger and toe replacements
11.Maxio-facial prosthetics


1 Medical titanium material
Titanium 6AL4V and 6AL4V ELI, alloys made of 6% Aluminum and 4% Vanadium, are the most common types of titanium used in medicine. Because of its harmonizing factor with the human body, these titanium alloys are popularly used in medical procedures, as well as in body piercings. Also known as Gr. 5 and Gr. 23, these are some of the most familiar and readily available types of titanium in the world.Medical Grade Titanium

Ti-6Al-4V and Ti-6Al-4V ELI offer greater fracture-resistance when used in dental implants. The implant procedure begins with the insertion of a titanium screw into the jaw. The screw resembles and acts like the root of the tooth. After an allotted amount of time has passed for the bone to have grown into the medical grade titanium screw, a fake tooth is connected to the implant.

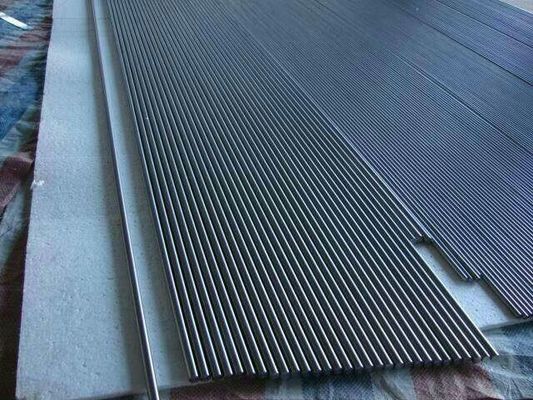

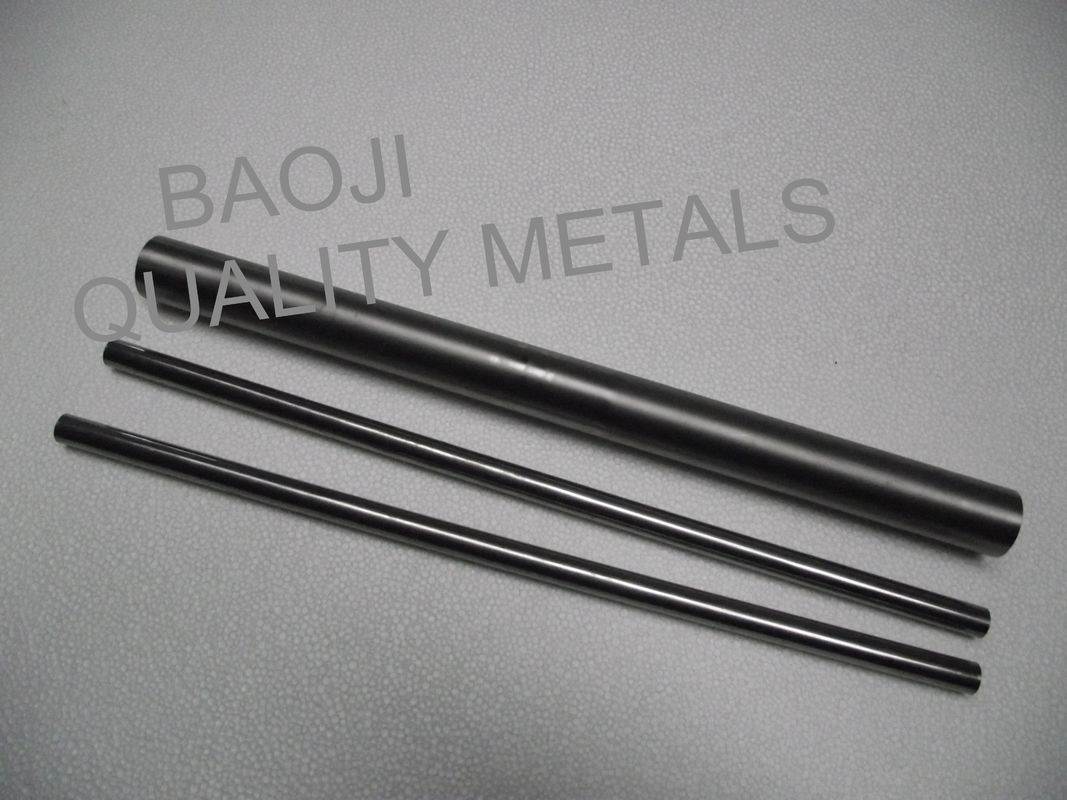

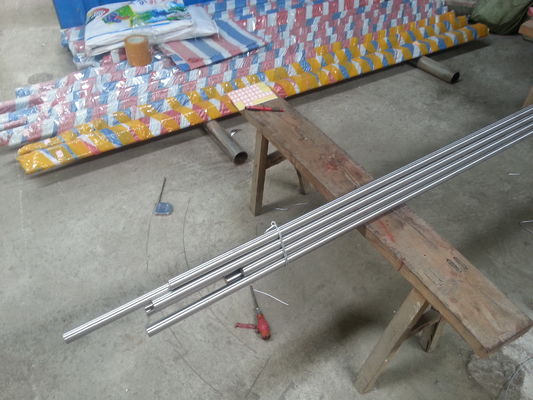

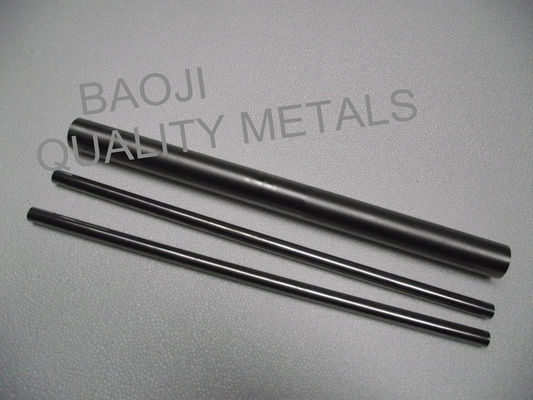

Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material 0Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material 1Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material 2Polished ASTM F136 Titanium Round Bar Alloy Gr5ELI Material 3


Titanium is a chemical element, the chemical symbol Ti, atomic number 22, is a silver-white transition metal, characterized by light weight, high strength, metallic luster, but also has good corrosion resistance (including seawater, king water and chlorine). Because of its stable chemical properties, good resistance to high temperature, low temperature, strong acid, strong alkali, as well as high strength, low density, has been praised as "space metal." Titanium was discovered by Gregor in Cornwall, England, in 1791 and named after the Greek mythical Titan by Clapert. Titanium is widely used in the medical field. Titanium is close to human bones and has good biocompatibility and non-toxic side effects on human tissue. Human implants are special functional materials closely related to human life and health. Compared with other metal materials,.
The advantages of using titanium and titanium alloys mainly include the following:
1. Light weight
2 . Low elastic modulus
3. Non-magnetic
4 . Non-toxic
5 . Corrosion resistance
6 . High strength, good toughness
The amount of titanium alloy used in surgical implants is increasing at a rate of 5%-7% per year. The use of titanium and titanium alloy manufactured femoral bones, hips, tibia, skull, knee, elbow, shoulder, palm finger, jaw and cardiodeterus membrane, kidney membrane, vascular dilater, splints, prosthesis, fastening screws and other hundreds of metal parts transplanted into the human body, achieved good results, has been highly rated by the medical community.

Terms of payment T/T, L/C
Packing Carton box
Delivery time 7-35days
Sample support
MOQ   50 kgs
Certification ISO9001:2015 certification
Business Type Manufacturer, Foreign Trading

Welcome to contact us for detail !
