Superconductor Titanium Flat Bar Copper T2 Material For Anode Hanging

5 piece
MOQ
Negotiable
Price
Superconductor Titanium Flat Bar Copper T2 Material For Anode Hanging
Features Gallery Product Description Request A Quote
Features
Specifications
Keyword: Superconductor Titanium Clad Copper Bar Rod For Anode Hanging Rod
Material: Titanium Gr2 And Copper T2
Standard: ASTM B432 GB/T12769-2003
Diameter: 6.35-78mm
Length: Maximum 6000mm
Advantage:: Acid Resistance High Performance
Technology: Rolled
High Light:

Superconductor Titanium Flat Bar

,

Copper T2 Titanium Flat Bar

,

Titanium Copper Composite Rod

Basic Infomation
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-C-2021-019
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 5-35 working days
Supply Ability: 500 piece/week
Product Description

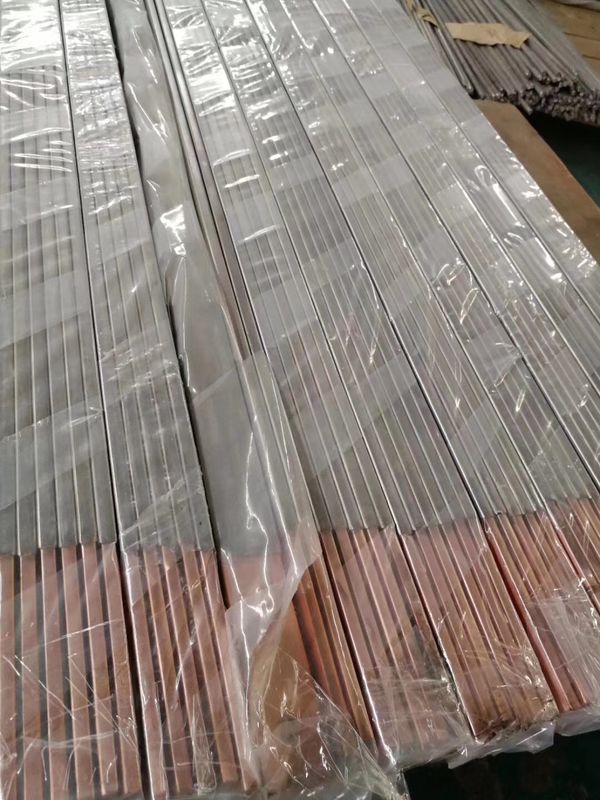

Superconductor Titanium Clad Copper Bar Rod for Anode Hanging Rod


High-quality Pure Ti Cladding Material Industrial Titanium Clad Copper Bar
For Electroplating
Titanium copper composite rod also known as titanium clad copper, a certain thickness of titanium layer is coated on a copper rod, which is the main component of the metal anode. It combines the excellent conductivity of copper with the excellent corrosion resistance of titanium. It is mainly used in electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell under the condition of strong corrosion. It is a kind of high quality electrode material.
Superconductor Titanium Flat Bar Copper T2 Material For Anode Hanging 0Superconductor Titanium Flat Bar Copper T2 Material For Anode Hanging 1




Advantages of titanium clad copper bar

1) Strong corrosion resistance, whether in industrial areas, heavily polluted urban areas, rural areas, or coastal areas, the surface of titanium does not change color after years.

(2) Good mechanical properties. The tensile strength of industrial pure titanium is higher than that of ordinary carbon structural steel.

(3) Good resistance to epidemic diseases and creep resistance.

(4) No magnetization effect, industrial pure titanium resistivity and thermal conductivity are similar to stainless steel.

(5) Industrial pure titanium is a self-protecting metal, and the surface scratches can heal automatically.

(6) Industrial pure titanium is used for compounding in the annealed state, and the processability is good (similar to stainless steel)

(7) The density of industrial pure titanium is 4.5X103kg / m3, which is 1.7 times of aluminum and 60% of steel. Good plasticity, elongation ≥30%.

(8) The surface can be subjected to various treatments, such as hair treatment, mirror treatment, or tapered treatment, and can also be processed into a variety of colors such as red, black, and white.



Titanium Clad Copper
Standard GB/T12769-2003 ASTM B432
Specification Wire: 2 - 6.35mm
Round: 6.35 - 44.45mm
Rectangle-flat: 20 x 120mm
Shape round, drum-shaped, square, flat, bespoke order
Application electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell





Welcome to contact us for detail
