Baoji Luox Quality Metals Co., Ltd.
Home ProductsTitanium Clad Copper Bar

ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance

China Baoji Luox Quality Metals Co., Ltd. certification
I'm Online Chat Now

ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance

ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance
ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance

Large Image :  ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance

Product Details:
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-C-2021-020
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 5 piece
Price: Negotiable
Packaging Details: plywood case
Delivery Time: 5-35 working days
Supply Ability: 500 piece/week
Detailed Product Description
Keyword: Titanium Copper CLAD BAR For Electrolysis Under Strong Corrosion Conditions Material: Copper T2 Titanium Gr2
Standard: ASTM B432 GB/T12769-2003 Diameter: As Order
Length: 200mm - 6000mm Advantage:: Acid Resistance High Performance
Technology: Rolled Name: TI CU CLAD BAR
Highlight:

Gr2 Titanium Clad Copper Rod

,

Titanium Clad Copper Rod

,

ASTM B432 Titanium Square Rod

Titanium Copper CLAD BAR for Electrolysis under Strong Corrosion Conditions

High-quality Pure Ti Cladding Material Industrial Titanium Clad Copper Bar
For Electroplating

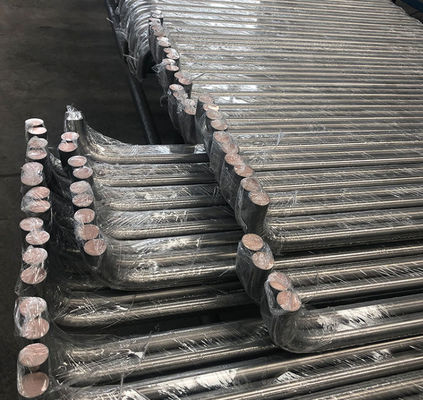

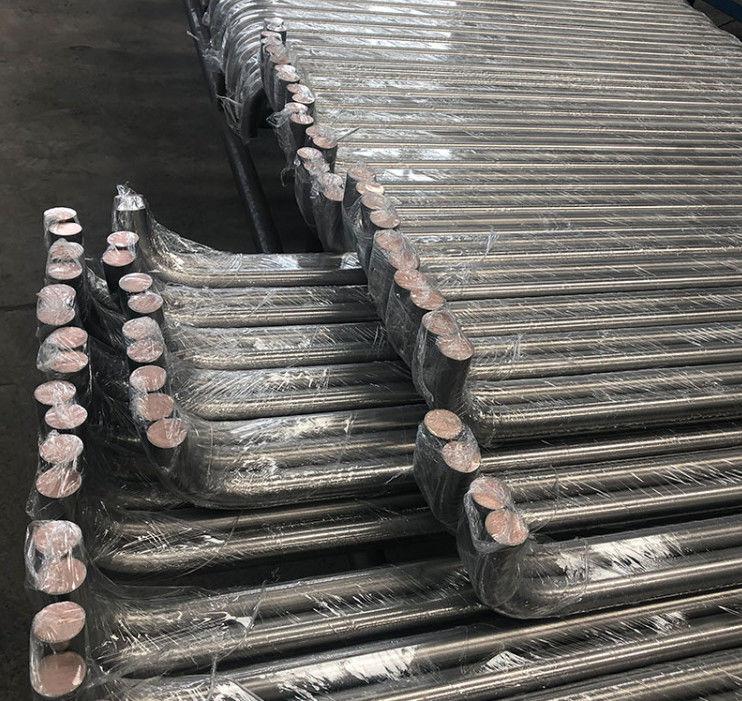

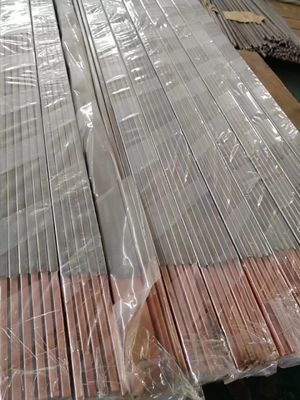

Titanium copper composite rod also known as titanium clad copper, a certain thickness of titanium layer is coated on a copper rod, which is the main component of the metal anode. It combines the excellent conductivity of copper with the excellent corrosion resistance of titanium. It is mainly used in electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell under the condition of strong corrosion. It is a kind of high quality electrode material.

ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance 0ASTM B432 Square Titanium Clad Copper Rod T2 Gr2 Material With Acid Resistance 1


Titanium Clad Copper
Substrate Copper T1 T2; Aluminium, etc.
Specification Round: 6.35 - 78mm
Rectangle: width 20mm - 150mm x thickness 6mm - 30mm
Flat: side length 10mm - 30mm
  (Other materials and specifications can be produced according to customer requirements.)
Cladding Materials Titanium, Zirconium, Nickel, Stainless steel(304, 316L), etc.
Cladding Thickness Normally 1.0mm - 2.5mm
Standard GB/T12769-2003 ASTM B432
  Wire: 2 - 6.35mm
Shape round, drum-shaped, square, flat
Application electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell



Titanium Clad Copper
Standard GB/T12769-2003 ASTM B432
Specification Wire: 2 - 6.35mm
Round: 6.35 - 44.45mm
Rectangle-flat: 20 x 120mm
Shape round, drum-shaped, square, flat, bespoke order
Application electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell



Q: Why choose us?

A1: We have 14 years experience for titanium products making.
A2: Provide third-party quality inspection reports.
A3: ISO9001:2015 certification
A4: 24 hours online service & quickly quote and delivery.
A5: Lower price, good quality and short delivery time.
A6: Sample order is acceptable.
