OEM Titanium Clad Copper , Titanium Round Bar For Hydrometallurgy GB/T12769-2003

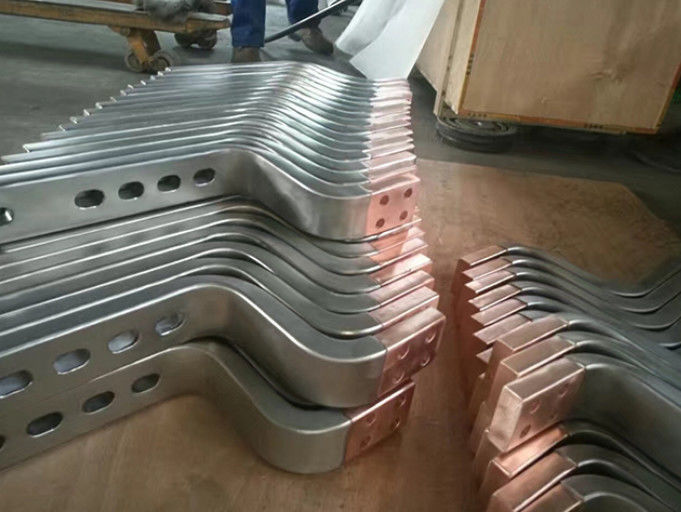

Large Image : OEM Titanium Clad Copper , Titanium Round Bar For Hydrometallurgy GB/T12769-2003

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-C-2021-025
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	5 piece
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5-35 working days
Supply Ability:	500 piece/week

Contact Now

Detailed Product Description

Keyword:	Customize Titanium Clad Copper For Electrolysis Electroplating Hydrometallurgy Metal Anode Electrolyzer	Standard:	ASTM B432 GB/T12769-2003
Diameter:	OEM	Material:	Titanium Gr2 Copper T2
Length:	200mm - 6000mm	Advantage::	Acid Resistance High Performance
Shape:	As Drawing
Highlight:	OEM Titanium Clad Copper , Hydrometallurgy Titanium Clad Copper , GB/T12769-2003 Titanium Round Bar

Customize Titanium Clad Copper for Electrolysis Electroplating Hydrometallurgy Metal Anode Electrolyzer

High-quality Pure Ti Cladding Material Industrial Titanium Clad Copper Bar
For Electroplating
Titanium copper composite rod also known as titanium clad copper, a certain thickness of titanium layer is coated on a copper rod, which is the main component of the metal anode. It combines the excellent conductivity of copper with the excellent corrosion resistance of titanium. It is mainly used in electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell under the condition of strong corrosion. It is a kind of high quality electrode material.

Titanium Clad Copper
Substrate	Copper T1 T2; Aluminium, etc.
Specification	Round: 6.35 - 78mm
	Rectangle: width 20mm - 150mm x thickness 6mm - 30mm
	Flat: side length 10mm - 30mm
	(Other materials and specifications can be produced according to customer requirements.)
Cladding Materials	Titanium, Zirconium, Nickel, Stainless steel(304, 316L), etc.
Cladding Thickness	Normally 1.0mm - 2.5mm
Standard	GB/T12769-2003 ASTM B432
	Wire: 2 - 6.35mm
Shape	round, drum-shaped, square, flat
Application	electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell

1, Features:

Titanium clad copper bar

Standards: GB/T12769-2003
Coat: Ti,Ni,Zr,Stainless Steel 316L, etc.
Base: Cu(T2,TU2),AL,etc.
Titanium layer: 0.5~3.6mm
Technology: metallurgical bonding by explosive rolled
Shape: Square, Round, Rectangle, Drum and so on ,also can do according to customer's requirement

Welcome to contact us for detail
