PL Titanium Weld Neck Flange , GR1 GR2 Titanium Cnc Machining ASME B16.5

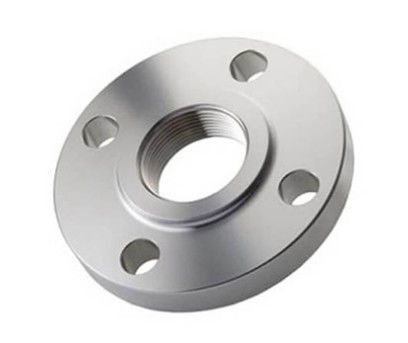

Large Image : PL Titanium Weld Neck Flange , GR1 GR2 Titanium Cnc Machining ASME B16.5

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-F-2021009
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	plastic paper inside, plywood case outside
Delivery Time:	5-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 piece/week

Contact Now

Detailed Product Description

Name:	ASME B16.5 ANSI B16.5 Titanium GR1 GR2 PL Welding Plate Flange	Material:	Titanium Alloy
Press Rating:	0.6-32MPa	Technology:	Forged And CNC Machining
Standard:	ASME B16.5 DIN	Surface:	RF FF
SIZE:	DN10-DN2500
Highlight:	Cnc Machining Titanium Weld Neck Flange , PL Titanium Weld Neck Flange , ASME B16.5 Titanium Cnc Machining

ASME B16.5 ANSI B16.5 titanium GR1 GR2 PL Welding plate flange

Standard	ANSI B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc.
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes

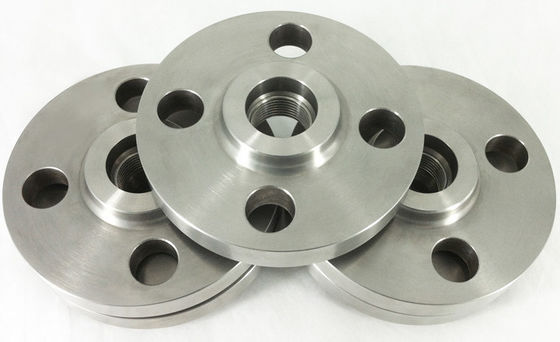

PL Titanium Weld Neck Flange , GR1 GR2 Titanium Cnc Machining ASME B16.5 0

1. Chemical requirements
聽	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Gr1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	balance
Gr2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	balance
Gr5	0.03	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5	/	/	/	balance
Gr7	0.03	0.08	0.015	0.3	0.25	/	/	0.12-0.25	/	/	balance
Gr12	0.03	0.08	0.015	0.25	0.15	2.0-3.0	2.0-3.0	/	/	/	balance

2. Tensile requirements
Grade	Tensile strength(min)	Tensile strength(min)	Yeild strength(min)	Yeild strength(min)	Elongation
	Ksi	Mpa	Ksi	Mpa	%
1	35	240	20	138	24
2	50	345	40	275	20
5	130	895	120	828	10
7	50	345	40	275	20
12	90	620	70	438	15

Custom titanium flange with logo

Available Flange types

a.Slip On Flange

b.Welding Neck Flange

c.Threaded Flange(Screwed Flange)

d.Plain Flange

e.Blind Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. welded flange

i.titanium large-diameter flange

Quality & Inspection:

1. PMI test to verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% press tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.
