Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	plastic paper inside, plywood case outside
Delivery Time:	5-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 piece/week

Contact Now

Detailed Product Description

Name:	Gr2 Gr3 Gr5 Titanium Exhaust Flange Pipe Titanium Flange	Grade:	Titanium Gr.2 Gr.5
Standard:	ANSI ASTM DIN	Technology:	Forged & CNC Machining
Press Rating:	0.6-32MPa	Surface:	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
SIZE:	1/2″ (15 NB) To 48″ (1200NB)
Highlight:	Gr3 Titanium Weld Neck Pipe Flanges , DIN2527 Weld Neck Pipe Flanges , RF 12″ Weld Neck Flange

Gr2 Gr3 Gr5 titanium exhaust flange pipe titanium flange

Custom titanium flange with logo

Available Flange types

a.Slip On Flange

b.Blind Flange

c.Welded flange

d.Plain Flange

e. Welding Neck Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. Threaded Flange(Screwed Flange)

i.Titanium large-diameter flange

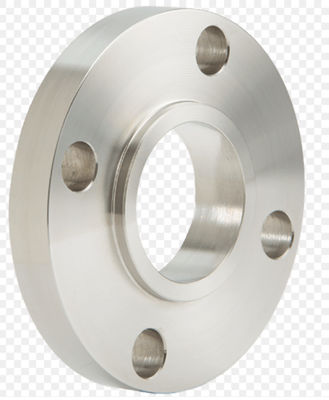

Gr2 Gr3 Titanium Weld Neck Pipe Flanges RF DIN2527 Standard 12″ Size 0

Gr2 Gr3 Titanium Weld Neck Pipe Flanges RF DIN2527 Standard 12″ Size 2

Dimensions :	ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
SIZE	1/2″ (15 NB) to 48″ (1200NB)
CLASS/ PRESSURE	150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN	DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Standard	ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Surface	pickling, annealing, bright, sandblast, hairline
Test Certificates	EN 10204/3.1B
	Raw Materials Certificate
	100% Radiography Test Report
	Third Party Inspection Report, etc
Type:	Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove.
