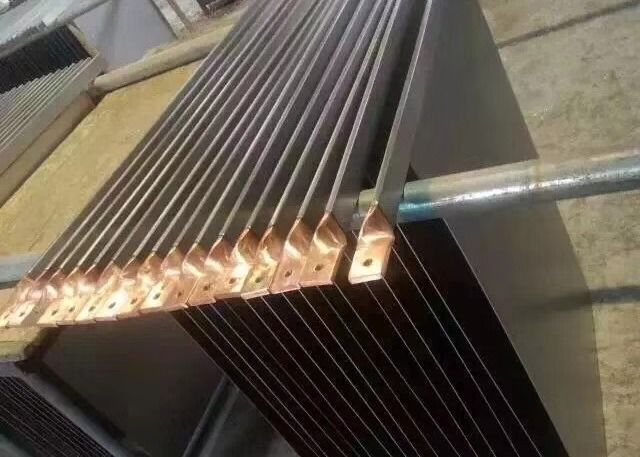

| Titanium Clad Copper | |
| Substrate | Copper T1 T2; Aluminium, etc. |
| Specification | Round: 6.35 - 78mm |
| Rectangle: width 20mm - 150mm x thickness 6mm - 30mm | |
| Flat: side length 10mm - 30mm | |
| (Other materials and specifications can be produced according to customer requirements.) | |
| Cladding Materials | Titanium, Zirconium, Nickel, Stainless steel(304, 316L), etc. |
| Cladding Thickness | Normally 1.0mm - 2.5mm |
| Standard | GB/T12769-2003 ASTM B432 |
| Wire: 2 - 6.35mm | |
| Shape | round, drum-shaped, square, flat |
| Application | electrolysis, electroplating, hydrometallurgy and metal anode electrolysis cell |
Advantages of titanium clad copper bar
1) Strong corrosion resistance, whether in industrial areas, heavily polluted urban areas, rural areas, or coastal areas, the surface of titanium does not change color after years.
(2) Good mechanical properties. The tensile strength of industrial pure titanium is higher than that of ordinary carbon structural steel.
(3) Good resistance to epidemic diseases and creep resistance.
(4) No magnetization effect, industrial pure titanium resistivity and thermal conductivity are similar to stainless steel.
(5) Industrial pure titanium is a self-protecting metal, and the surface scratches can heal automatically.
(6) Industrial pure titanium is used for compounding in the annealed state, and the processability is good (similar to stainless steel)
(7) The density of industrial pure titanium is 4.5X103kg / m3, which is 1.7 times of aluminum and 60% of steel. Good plasticity, elongation ≥30%.
(8) The surface can be subjected to various treatments, such as hair treatment, mirror treatment, or tapered treatment, and can also be processed into a variety of colors such as red, black, and white.
