Custom Ansi B16.5 Gr2 Titanium Forged Flange pickling Surface

1 piece
MOQ
Negotiable
Price
Custom Ansi B16.5 Gr2 Titanium Forged Flange pickling Surface
Features Gallery Product Description Request A Quote
Features
Specifications
Item: Standard Ansi B16.5 Gr2 Titanium Forged Flange
Titanium: Grade 2, Grade 5
SIZE: 1/2″ (15 NB) To 48″ (1200NB)
Technology: Forged And CNC Machining
Surface: Pickling, Annealing, Bright, Sandblast, Hairline
Standard: DIN ISO ASME B16.5
High Light:

Gr2 Titanium Forged Flange

,

Titanium Forged Flange Ansi B16.5

,

Pickling Titanium Weld Neck Flange

Basic Infomation
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-FL-202209026
Payment & Shipping Terms
Packaging Details: plastic paper inside, plywood case outside
Delivery Time: 5-35 working days
Payment Terms: L/C, T/T
Supply Ability: 1000 piece/week
Product Description

Best Price Standard Ansi B16.5 Gr2 Titanium Forged Flange

Custom titanium flange with logo



Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
SIZE 1/2″ (15 NB) to 48″ (1200NB)
CLASS/ PRESSURE 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Flange Face Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Surface pickling, annealing, bright, sandblast, hairline
Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Type: Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection Type Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove.

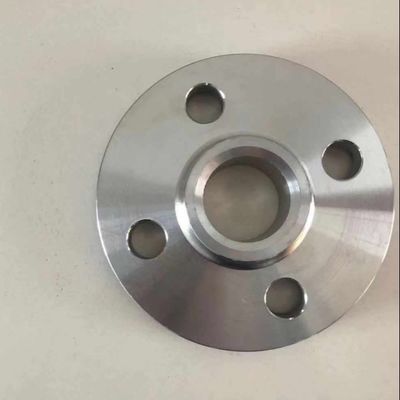

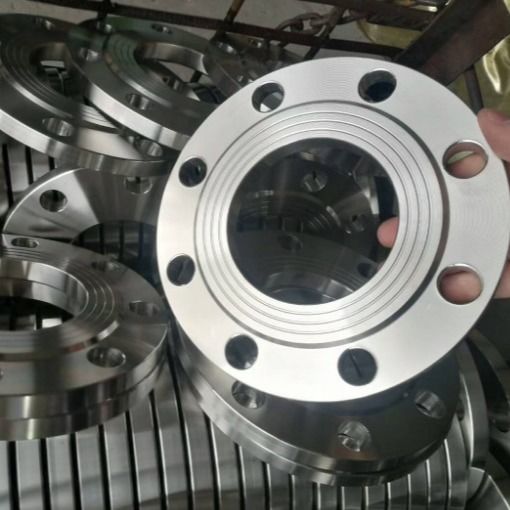

Custom Ansi B16.5 Gr2 Titanium Forged Flange pickling Surface 0Custom Ansi B16.5 Gr2 Titanium Forged Flange pickling Surface 1

Titanium flanges are also called titanium flanges or flanges. Titanium flanges are parts that connect pipes to each other and are connected to pipe ends. There are holes in the titanium flanges, and the bolts make the two titanium flanges tightly connected. Gasket sealing between titanium flanges. Titanium flanges are divided into threaded (wired) titanium flanges and welded titanium flanges.
Titanium flange is a disc-shaped part, which is common in pipeline engineering. Titanium flanges are used in pairs and with matching titanium flanges on valves. In pipeline engineering, titanium flanges are mainly used for the connection of pipelines. In the pipelines that need to be connected, a piece of titanium flanges can be installed in various ways. Wire-connected titanium flanges can be used for low-pressure pipelines, and welded titanium flanges can be used for pressures above 4 kg. Add a gasket between the two titanium flanges and fasten them with bolts.
1. Connect the pipeline and maintain the sealing performance of the pipeline;
2. It is convenient to replace a certain section of pipeline;
3. It is easy to disassemble and check the condition of the pipeline;
4. It is convenient for the sealing of a certain section of pipeline.




Available Flange types

a.Slip On Flange

b.Welding Neck Flange

c.Threaded Flange(Screwed Flange)

d.Plain Flange

e.Blind Flange

f.Lap Joint Flange

g.Wocket Welding Flange

h. welded flange

i.titanium large-diameter flange



Quality & Inspection:

1. PMI test to verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% press tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.
