Titanium GR1 GR5 Long Welding Neck Flange WN CL600 ASME SB381 Standard

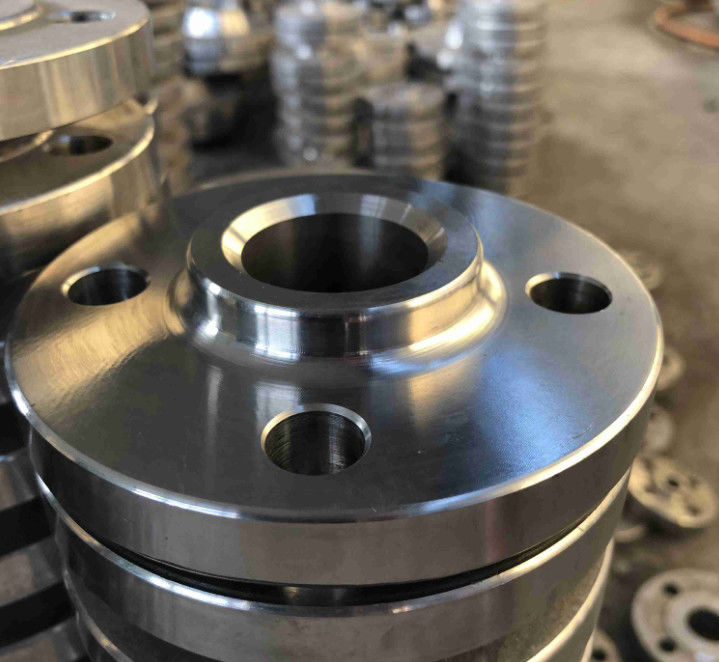

Large Image : Titanium GR1 GR5 Long Welding Neck Flange WN CL600 ASME SB381 Standard

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-F-2021005
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	plastic paper inside, plywood case outside
Delivery Time:	5-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	1000 piece/week

Contact Now

Detailed Product Description

Name:	ASNI ASME B16.5 Titanium GR1 GR5 WN Welding Neck Flange CL600	Dimension:	O.D.(200-1300mm)
Technique:	Forged Machined Finish	Standard:	ASME SB381 / ASTM B381, AMS 4928
Material:	Gr.5 (Ti6AL4V)	Custom Logo:	Support
Highlight:	GR1 Long Welding Neck Flange , Gr5 Long Welding Neck Titanium Flange , ASME SB381 Flange Long Welding Neck

ASNI ASME B16.5 titanium GR1 GR5 WN welding neck flange CL600

Product name: Grade 5 Titanium Ring

ASNI ASME B16.5 titanium GR1 GR5 WN welding neck flange CL600

Material Grade: Titanium GR5

Standard: ASME SB381 / ASTM B381, AMS 4928

Size: OD200-1500mm * ID100-1200mm *Height20*600mm

Tecunique: Forged,CNC machined

Application: Electroplating, Chemical engineering & Petrochemical technology, Aviation etc.

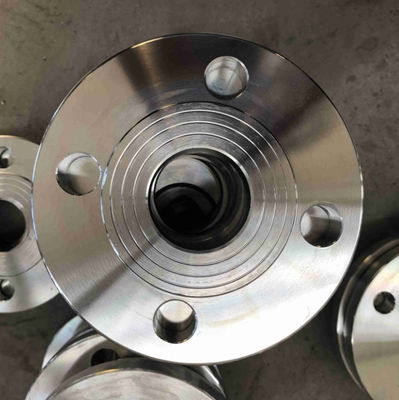

Titanium GR1 GR5 Long Welding Neck Flange WN CL600 ASME SB381 Standard 0

Standard	ANSI B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc.
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes

Categroy	Grade	Standard	Size(mm)
Categroy	Grade	Standard	OD	ID	Height	Thickness
Ring materials	Gr1.Gr2.Gr4. Gr5.Gr7.Gr9	ASME SB381 / ASTM B381, AMS 4928	200~400	100~300	35~120	40~150
			400~700	150~500	40~160	40~250
			700~900	300~700	50~180	40~300
			900~1300	400~900	70~250	40~400

Quality & Inspection:

1. PMI test to verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% press tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.
