Gr2 Gr5 Acid Cleaning Flat Titanium Alloy Plate ASTM B265

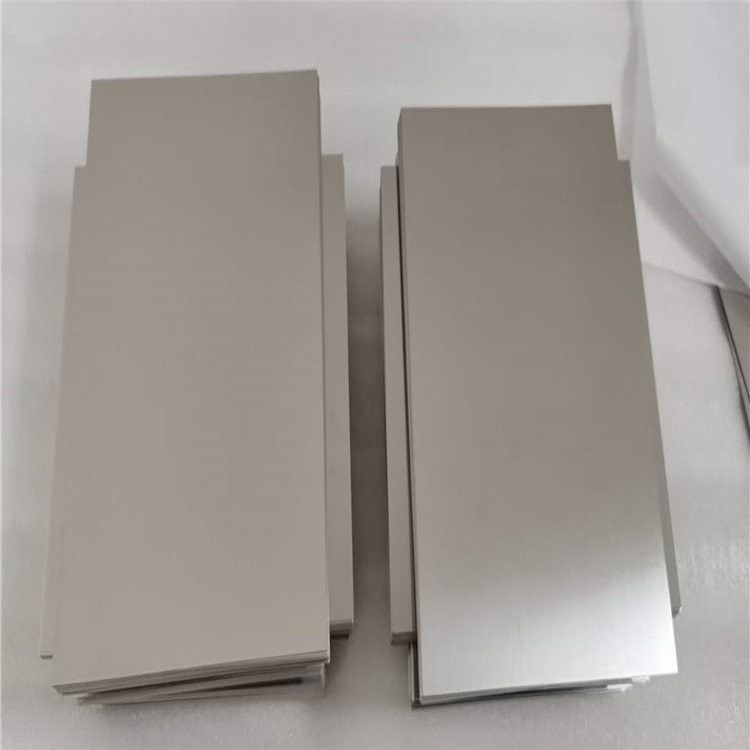

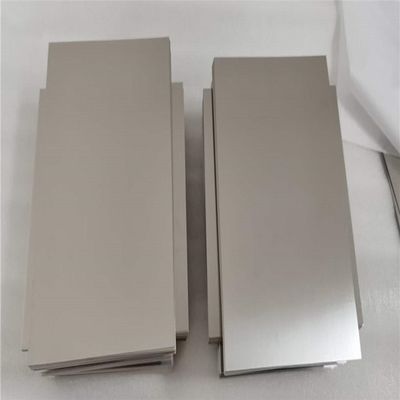

Large Image : Gr2 Gr5 Acid Cleaning Flat Titanium Alloy Plate ASTM B265

Product Details:

Place of Origin:	China
Brand Name:	CDX
Certification:	ISO9001:2015 certification
Model Number:	CDX-TB-2022-11
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	100kg
Price:	Negotiable
Packaging Details:	plywood case
Delivery Time:	5-35days
Payment Terms:	L/C, T/T
Supply Ability:	50000 kg per month

Contact Now

Detailed Product Description

Item:	Gr5 Titanium Alloy Plate Titanium Sheet Grade 2 ASTM B265	Technique:	Forging And Rolling Anneal
Key Word:	Titanium Alloy Bar,Pure Titanium Round Bar	Surface:	Polished,Bright,Pickling,Acid Cleaning
Shape:	Round,Square,round/flat,Round.square.Rectangular,drum	Grade:	Titanium,Gr1,Gr5,23,3
Highlight:	Titanium Alloy Plate ASTM B265 , Gr2 Flat Titanium Sheet , Acid Cleaning Titanium Alloy Plate

Gr5 Titanium Alloy Plate Titanium Sheet Grade 2 ASTM B265

The application of titanium plate:

(1). Titanium plates can be used for pipes and containers of various shapes,

such as storage tanks, reactors, towers, etc.;

(2). Titanium plates can be used to make heat exchangers.

The advantages of titanium plate:

1. Titanium plate has strong corrosion resistance and long service life.

2. The weight of the titanium plate is light.

3. Titanium plate has good strength.

4. Titanium plate has good thermal conductivity.

5. The titanium plate is non-toxic and resistant to high temperature.

6. Titanium plate has good plasticity.

7. Titanium plate is easy to process and form.

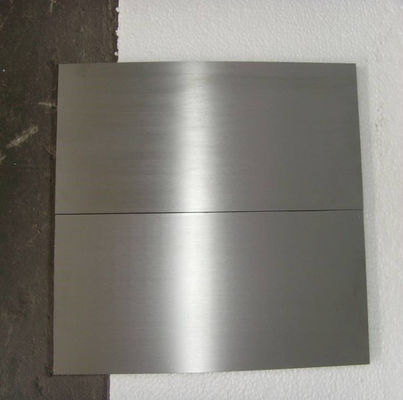

Gr2 Gr5 Acid Cleaning Flat Titanium Alloy Plate ASTM B265 0

Chemical Requirements:

Grade	N	C	H	Fe	O	Al	V	Pa	Mo	Ni	Ti
GR 1	0.03	0.08	0.015	0.2	0.18	/	/	/	/	/	bal
GR 2	0.03	0.08	0.015	0.3	0.25	/	/	/	/	/	bal
GR 5	0.05	0.08	0.015	0.4	0.2	5.5~6.75	3.5~4.5	/	/	/	bal

Process titanium parts according sample or drawing.

Physical Properties:

Grade	State	Tensile strength(min)		Yeild strength (min)		Elongation (%)
Grade	State	Ksi	MPa	ksi	MPa	Elongation (%)
GR 1	(M)Annealed	35	240	20	138	24
GR 2	(M)Annealed	50	345	40	275	20
GR 5	(M)Annealed	130	895	120	828	10

Quality & Inspection:

1. 100% inpection of verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.

Welcome to contact us for further information!
