Medical titanium plate

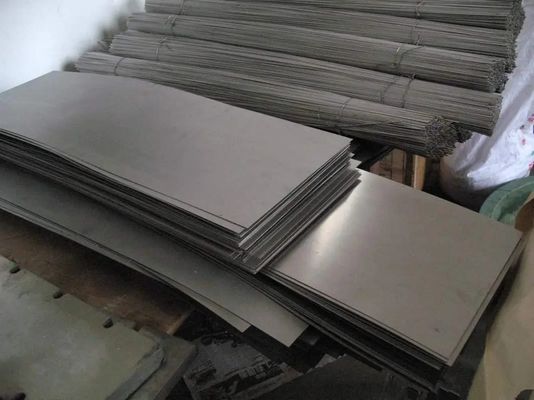

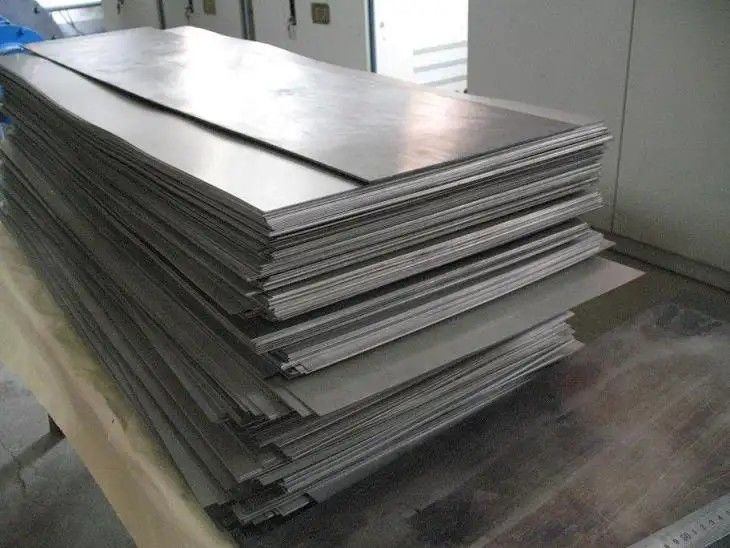

Rolled titanium plate
Hot rolled titanium plate cold rolled titanium plate
Titanium industry plate
| Grade 1 titanium plate : Pure Titanium, relatively low strength and high ductility. |
| Grade 2 titanium plate : The pure titanium most used. The best combination of strength, weldability. |
| Grade 3 titanium plate : High strength Titanium, used for Matrix-plates in shell and tube heat exchangers. |
| Grade 5 titanium plate : The most manufactured titanium alloy. Exceedingly high strength. high heat resistance. |
| Grade 7 titanium plate : Superior corrosion resistance in reducing and oxidizing environments. |
| Grade 9 titanium plate : Very high strength and corrosion resistance. |
| Grade 12 titanium plate : Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11. |
| Grade 23 titanium plate: Titanium-6Aluminum- 4Vanadium ELI. Alloy for surgical implant application. |
宝鸡丞德鑫钛金属材料有限公司
Baoji Quality Metals Co., Ltd 质 量 证 明 书
Quality Certificate
证书编号(Certificate No.):CDX20220625LA
|
合 同 号 Contract No. |
产品名称 Description |
牌 号 Designatio No. |
批 号Lot No/锭 号Heat No. |
状 态 Condition |
规 格 Size(mm) |
数 量 Quantity |
产品标准 Product Standard |
||||||||||||||||
| / | 钛板 | TA2 | CDX20214# | M | 20mm×1000mm×2000mm | sample | GB/T3621 | ||||||||||||||||
|
室温力学性能
Tensile test
|
试验温度(℃) Test Temperature |
抗拉强度 Rm(MPa) Tensile Strength |
屈服强度 Rp0.2(MPa) Yield Strength |
断后伸长率 A(%) Elongation |
断面收缩率 Z(%) Reduction of arca |
水压试验 Hydraulic pressure test |
扩口试验 Expanding text |
压扁试验 Flattening text |
|||||||||||||||
| Result | 455 | 330 | 30 | / | 合格 | 合格 | 合格 | ||||||||||||||||
|
其 它
Others |
弯曲试验 ro Bend Test |
低倍组织
Macrostructure |
高倍组织
Microstructure |
外形尺寸 Dimensional Inspection |
表面质量 Visual Inspection |
探伤检验 Ultrasonic Inspection |
/ | ||||||||||||||||
| / | / | / | 合 格 | 合 格 | ok | / | |||||||||||||||||
| 化 学 成 份 Chemical Composition (％) | |||||||||||||||||||||||
| Result | Ti | Al | Sn | / | / | / | / | Fe | C | N | H | O | Residual element | ||||||||||
| Remainder | / | / | / | / | / | / | 0.019 | 0.014 | 0.006 | 0.0011 | 0.094 | ≤0.10 | ≤0.30 | ||||||||||
|
Prepared by: 李海魁 批准: Report Date: 2022年11月8日 |
|||||||||||||||||||||||
package
| Terms of payment | T/T, L/C |
| Certification | ISO9001:2015 certification |
| Delivery time | 7-35days |
| Size | customs made |
| Density | 4.51g/cm3 |
| Packing | Plywood case tied by steel band or as per client requirements |
| Quality contral | Ultrasonic testing & material test report & VISUAL INSPECTION |
