Astm B265 Medical Titanium Alloy Plate Gr23 With Heat Resistance ISO 9001:2008

Astm B265 Medical Titanium Alloy Plate Gr23 With Heat Resistance ISO 9001:2008
Features Gallery Product Description Request A Quote
Key Word: Titanium Plate Gr2 Titanium Sheet Astm B265 Titanium Alloy Plate Gr5
Standard Size: 1000*2000mm
Size Customized: Support
Standard: ASTM B265,ASME SB265,ASTMB265,GB/T 3621-2007,DIN 17860-90
Thickness: 0.3-60mm
Shape: Round,Square,Round.square.Rectangular,drum
Length: 6000mm,500~6000mm,customized
Grade: Titanium,Gr1,Gr5,23
Weight: 4.51g/cm3,Actual Weight
High Light:

Astm B265 Titanium Alloy Plate


Gr23 Titanium Alloy Plate


ISO 9001:2008 Medical Titanium Alloy

Basic Infomation
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-TB-2021-15
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 5-35days
Payment Terms: L/C, T/T
Supply Ability: 50000 kg per month
Product Description

titanium plate gr2 titanium sheet astm b265 titanium alloy plate gr5

Item Name GR5 GR7 Ti Plates and Sheets Titanium Alloy Titanium Foil
Application Metallurgy, electronics, petroleum, aerospace Industry, Medical, Surgical plant, Aerospace, Chemical industry Electronic industry Mechanical engineering
Type GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18
Standard ASTM B265, AMS4911, AMS4911H, ASTM F136, ASTM F67 GB/T3621-2007
Specification Hot Rolling: Length 1000-4000mm,Width 400-3000mm,Thickness 4.1-60mm
Cold Rolling :Length 1000-3000mm,Width 400-1500mm,Thickness 0.3-3.0mm
Certificate ISO 9001:2008
Supply Ability 10 Tons per Month
Delivery Within 5~35 days
Grade Grade 1: Pure Titanium, relatively low strength and high ductility.
Grade 2: The pure titanium most used. The best combination of strength, weldability.
Grade 3: High strength Titanium, used for Matrix-plates in shell and tube heat exchangers.
Grade 5: The most manufactured titanium alloy. Exceedingly high strength. high heat resistance.
Grade 7: Superior corrosion resistance in reducing and oxidizing environments.
Grade 9: Very high strength and corrosion resistance.
Grade 12: Better heat resistance than pure Titanium. Applications as for Grade 7 and Grade 11.
Grade 23: Titanium-6Aluminum- 4Vanadium ELI. Alloy for surgical implant application.

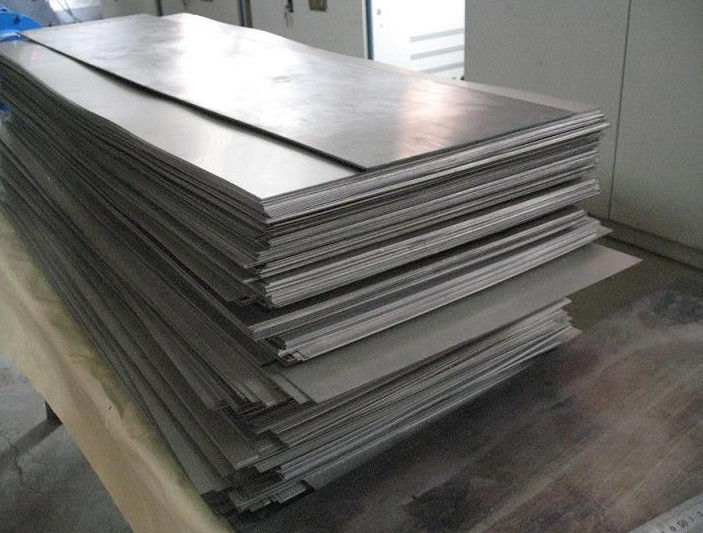

Astm B265 Medical Titanium Alloy Plate Gr23 With Heat Resistance ISO 9001:2008 0

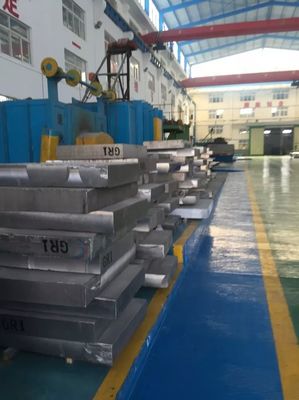

Astm B265 Medical Titanium Alloy Plate Gr23 With Heat Resistance ISO 9001:2008 1Astm B265 Medical Titanium Alloy Plate Gr23 With Heat Resistance ISO 9001:2008 2


Grades C max O max H max Fe max Al V
Grade1 0.08 0.18 0.015 0.20 / /
Grade2 0.08 0.25 0.015 0.30 / /
Grade5 0.08 0.20 0.015 0.40 5.50~ 6.75 3.50~ 4.50
Grade 12 0.08 0.25 0.015 0.30 / /


ASTM B265 Commonly used grades Mechanical Properties (%):

Grades Yield Point Mpa (N/mm2) Tensile Strength Mpa (N/mm2) Elongation% min
Grade1 138~ 310 242 24
Grade2 276~ 448 345 20
Grade5 828 897 10
Grade 12 345 483 18





Thickness:5~100mm, Width:1200~2500mm, length:3000~10000mm

Appliation:Used in: aerospace, military advisor, industrial processes, automotive, agri-food, medicine, etc.

Unalloyed Titanium grades:

Grade 1,Grade 2,Grade 3,Grade 7,Grade 11 (CP Ti-0.15Pd),Grade 16,Grade 17,Grade 26,Grade 27

Titanium Based Alloys grades:

Grade 5(Ti-6Al-4V),Grade 9 ( Ti 3Al-2.5V),Grade 12 (Ti-0.3-Mo-0.8Ni),Grade 19 (Ti Beta C),Grade 23 (Ti 6Al-4V ELI),Grade 28

Grades of supply:Gr1 ,Gr2 ,Gr5,Gr12

ASTM B265 Commonly used grades Chemical Composition:


ASTM B265 titanium and titanium alloy sheet

ASTM B265 covers annealed titanium and titanium alloy strip, sheet, and plate. ASTM B265 Ti and Ti-based alloy plates are widely used in the equipment for high-temperature environment, including aircraft equipment, petroleum and petrochemical, biomaterial, ocean and chemical industry, for example: blade, storage tank, target, tube and heat-exchanger equipment.

Usually we provide a quality inspection report with the goods, which shows the chemical composition and physical properties
