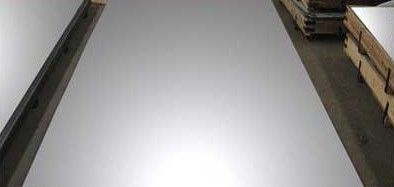

| Item Name | Titanium plate |
| Application | Metallurgy, electronics, petroleum, aerospace Industry, Medical, Surgical plant, Aerospace, Chemical industry Electronic industry Mechanical engineering |
| Type | GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18 |
| Standard | ASTM B265, AMS4911, AMS4911H, ASTM F136, ASTM F67 GB/T3621-2007 |
| Specification | Hot Rolling: Length 1000-4000mm,Width 400-3000mm,Thickness 4.1-60mm |
| Cold Rolling :Length 1000-3000mm,Width 400-1500mm,Thickness 0.3-3.0mm | |
| Certificate | ISO 9001:2008 |
| Supply Ability | 10 Tons per Month |
| Delivery | Within 5~35 days |
宝鸡丞德鑫钛金属材料有限公司
Baoji Quality Metals Co., Ltd 质 量 证 明 书
Quality Certificate
证书编号(Certificate No.):CDX20220625LA
|
合 同 号 Contract No. |
产品名称 Description |
牌 号 Designatio No. |
批 号Lot No/锭 号Heat No. |
状 态 Condition |
规 格 Size(mm) |
数 量 Quantity |
产品标准 Product Standard |
||||||||||||||||
| / | 钛板 | TA2 | CDX20214# | M | 20mm×1000mm×2000mm | sample | GB/T3621 | ||||||||||||||||
|
室温力学性能
Tensile test
|
试验温度(℃) Test Temperature |
抗拉强度 Rm(MPa) Tensile Strength |
屈服强度 Rp0.2(MPa) Yield Strength |
断后伸长率 A(%) Elongation |
断面收缩率 Z(%) Reduction of arca |
水压试验 Hydraulic pressure test |
扩口试验 Expanding text |
压扁试验 Flattening text |
|||||||||||||||
| Result | 455 | 330 | 30 | / | 合格 | 合格 | 合格 | ||||||||||||||||
|
其 它
Others |
弯曲试验 ro Bend Test |
低倍组织
Macrostructure |
高倍组织
Microstructure |
外形尺寸 Dimensional Inspection |
表面质量 Visual Inspection |
探伤检验 Ultrasonic Inspection |
/ | ||||||||||||||||
| / | / | / | 合 格 | 合 格 | ok | / | |||||||||||||||||
| 化 学 成 份 Chemical Composition (％) | |||||||||||||||||||||||
| Result | Ti | Al | Sn | / | / | / | / | Fe | C | N | H | O | Residual element | ||||||||||
| Remainder | / | / | / | / | / | / | 0.019 | 0.014 | 0.006 | 0.0011 | 0.094 | ≤0.10 | ≤0.30 | ||||||||||
|
Prepared by: 李海魁 批准: Report Date: 2022年11月8日 |
|||||||||||||||||||||||
1. Titanium plate has strong corrosion resistance and long service life.
2. The weight of the titanium plate is light.
3. Titanium plate has good strength.
4. Titanium plate has good thermal conductivity.
5. The titanium plate is non-toxic and resistant to high temperature.
6. Titanium plate has good plasticity.
7. Titanium plate is easy to process and form.
8. Titanium plate has good electrical conductivity.
9. The titanium plate can be welded and easy to polish.
10. Titanium plate has high tensile strength. (Twice as high as stainless steel).
11. The surface gloss of the titanium plate is good.
12. Titanium plate is not easy to adhere to organic matter.
13. The titanium plate is easy to clean.
14. Titanium plate is not magnetic.
15. Titanium plate has good compatibility with most metal materials and non-metals.
16. Titanium plate has excellent noise reduction effect and shock absorption effect.
17. Titanium plate has excellent heat resistance and low temperature toughness.
18. Titanium plate will not oxidize and lose luster at high temperature.
Medical titanium plate

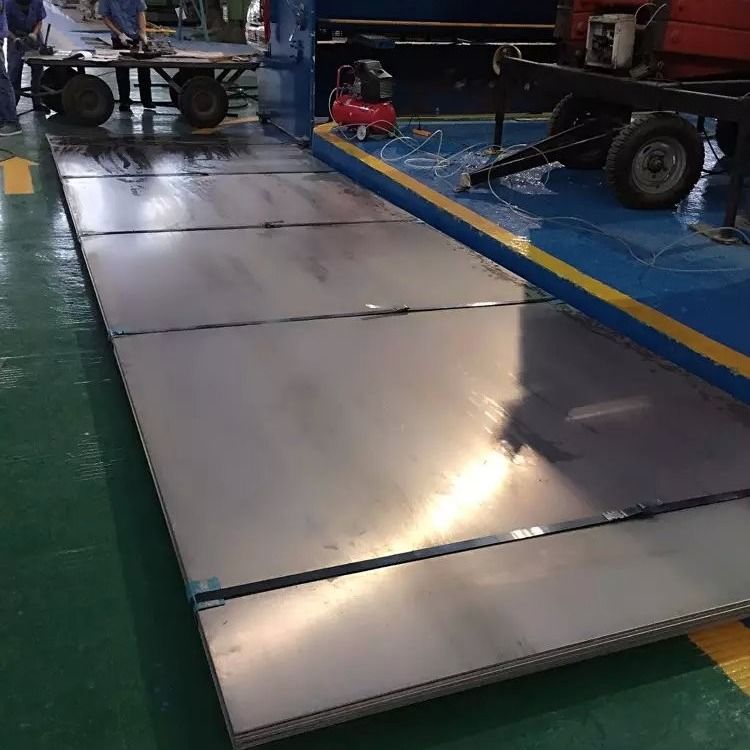

Rolled titanium plate
Hot rolled titanium plate cold rolled titanium plate
Titanium industry plate
