Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265

100kg
MOQ
Negotiable
Price
Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Cold Rolled Astm B265 GR1 GR2 GR3 GR5 Grade 5 Titanium Metal Plate Sheet
Surface: Mirror Polished, Bright, Pickling, Acid Cleaning
Density: 4.51g/cm3
Technique: Forged,Rolled,forging And Rolling Anneal
Application: Industrial And Medical,electroplating Equipment,Mechanical Equipment
Standard: ASTM B348,ASTM F136,AMS 4928,ASTM F67,Hot Sale Gr1 Titanium Bar
High Light:

Titanium Metal Plate Sheet GR5

,

Cold Rolled Titanium Plate Sheet

,

Mirror Polished Titanium Metal Plate

Basic Infomation
Place of Origin: China
Brand Name: CDX
Certification: ISO9001:2015 certification
Model Number: CDX-TB-2022-18
Payment & Shipping Terms
Packaging Details: plywood case
Delivery Time: 5-35days
Payment Terms: L/C, T/T
Supply Ability: 50000 kg per month
Product Description

cold rolled astm b265 GR1 GR2 GR3 GR5 grade 5 titanium metal plate sheet

Item Name cold rolled astm b265 GR1 GR2 GR3 GR5 grade 5 titanium metal plate sheet
Application Metallurgy, electronics, petroleum, aerospace Industry, Medical, Surgical plant, Aerospace, Chemical industry Electronic industry Mechanical engineering
Type GR1, GR2, GR3, GR4, GR5, 6AL4V Eli, GR7, GR9, GR12, GR23,TB3, TB6, TC4, TC6, TC11, TC17, TC18
Standard ASTM B265, AMS4911, AMS4911H, ASTM F136, ASTM F67 GB/T3621-2007
Specification Hot Rolling: Length 1000-4000mm,Width 400-3000mm,Thickness 4.1-60mm
Cold Rolling :Length 1000-3000mm,Width 400-1500mm,Thickness 0.3-3.0mm
Certificate ISO 9001:2008
Supply Ability 10 Tons per Month
Delivery Within 5~35 days



Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265 0Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265 1Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265 2

Mill Test Certificate sample

宝鸡丞德鑫钛金属材料有限公司

Baoji Quality Metals Co., Ltd                                                         质 量 证 明 书

                                                                                                    Quality Certificate

                                                                                                                                              证书编号(Certificate No.):CDX20220625LA

合 同 号

Contract No.

产品名称

Description

牌 号

Designatio No.

批 号Lot No/锭 号Heat No.

状 态

Condition

规 格

Size(mm)

数 量

Quantity

产品标准

Product Standard

/ 钛板 TA2 CDX20214# M 20mm×1000mm×2000mm sample GB/T3621

室温力学性能



Tensile test



试验温度(℃)

Test

Temperature

抗拉强度

Rm(MPa)

Tensile Strength

屈服强度

Rp0.2(MPa)

Yield Strength

断后伸长率

A(%)

Elongation

断面收缩率

Z(%)

Reduction of arca

水压试验

Hydraulic pressure test

扩口试验

Expanding text

压扁试验

Flattening text

Result 455 330 30 / 合格 合格 合格

其 它



Others

弯曲试验

ro

Bend Test

低倍组织



Macrostructure

高倍组织



Microstructure

外形尺寸

Dimensional

Inspection

表面质量

Visual

Inspection

探伤检验

Ultrasonic

Inspection

/
/ / / 合 格 合 格 ok /
化 学 成 份 Chemical Composition (%)
Result Ti Al Sn / / / / Fe C N H O Residual element
Remainder / / / / / / 0.019 0.014 0.006 0.0011 0.094 ≤0.10 ≤0.30

Prepared by: 李海魁                                                批准:                                                                         Report Date: 2022118

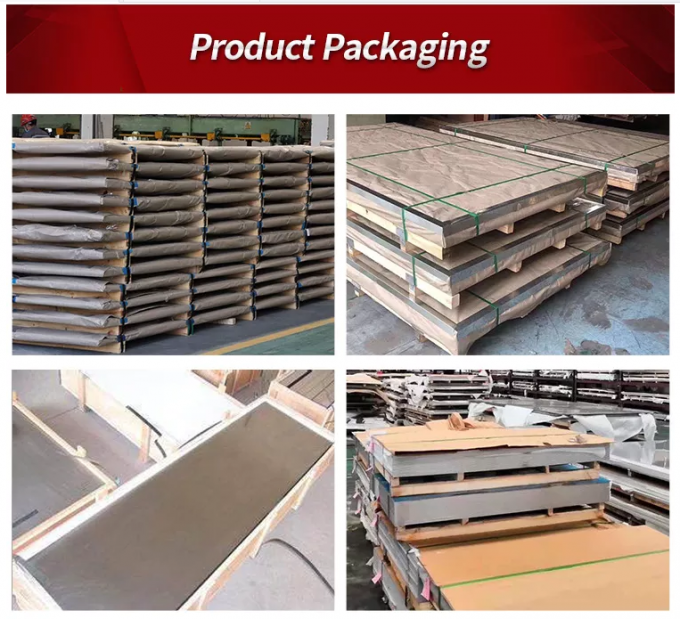

package



Cold Rolled Titanium Metal Plate Sheet GR1 GR2 GR3 GR5 ASTM B265 3

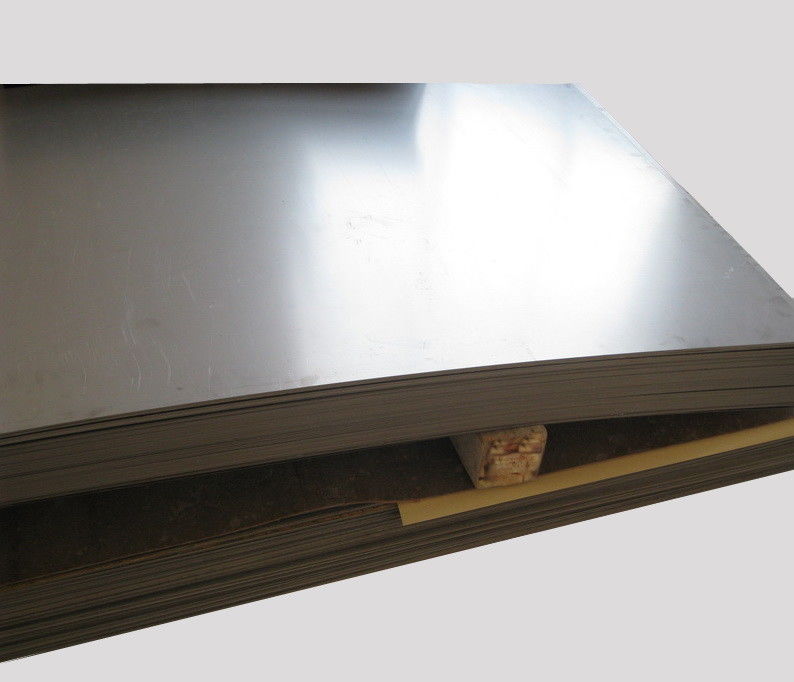

Titanium plate

Medical titanium plate

Rolled titanium plate

Hot rolled titanium plate cold rolled titanium plate

Titanium industry plate



key words

Titanium Plate, High, 4x8 sheet metal prices titanium mini sheet plate,

ASTM B265 titanium metal surgical plate price and titanium armor plate,

anodized titanium plate G5 cutting titanium sheet metal



Terms of payment T/T, L/C
Packing Carton box
Delivery time 7-35days
Sample support
MOQ 10 pieces
Certification ISO9001:2015 certification
Business Type Manufacturer, Foreign Trading

Process titanium parts according sample or drawing.

Welcome OEM, ODM !
